Replacement Ear Pad Cushions Compatible with the Sony WH-1000XM5
Fits Wrist
How do I know if a Watch Strap will fit your wrist?
These measurements are the cirucmference size of wrist that this strap will fit when attached to your watch and done up using the provided strap connections. This can be worked our for your wrist by using a sewing tape to measure the cirucmerfence of your wrist just below your wrist bone.
Please note: this measurements are in Milimeteres (mm)
What is the Watch Lug Width?
The Lug Width refers to the width of the watch where the watch strap attaches.
The Watch Strap is often the same as the Lug Width but not always, sometimes the strap of the width can vary to where it attaches to the watch (attaches to the Watch Lug)
In this instance, this watch strap will fit a watch with a lug width of
What is the Watch Strap Width?
The Watch Strap Width (also know as the Watch Buckle Width), which is the width of the strap at the buckle. While this is often the same as the Lug Width, it is not always the same. For this Watch Band, the Watch Strap Width is
What is the Total Watch Strap Length?
The Total Watch Strap Length refers to the total length of the Watch Strap (both pieces pictured above added together, ie Total Watch Strap Length = Short Part + Long Part) when butted together. This excludes the watch itself or where the buckle holes are, rather the total length of the phsyical strap itself.
This does not mean this is the size wrist this will fit.
What is the Watch Length?
The Watch Length (also known as the Case Size or Case Diameter) is the length of the watch itself from watch strap end to watch strap end (also known as Lug to Lug). This can be added to the openable watch size to work out the size strap needed to fit your wrist circumference.
Width |
Approx. 75mm |
|---|---|
|
Height |
Approx. 95mm |
|
Thickness |
Approx. 30mm |
Comes With |
|
Compatible Watch Brand |
Sony |
Compatible with |
|
Compatible Watch Model Number(s) |
|

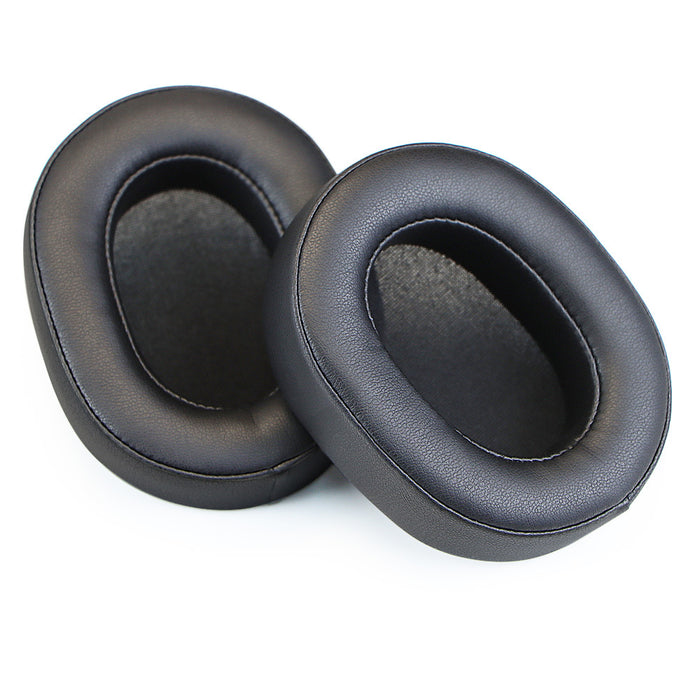

Check out these high quality Ear Pads Cushions compatible with Sony Headset Range.
Standout from the crowd!
Material: Leather & Foam
Compatible with:
Sony WH-1000XM5
How to change the Ear Pad Cushions on the Sony 1000xm5
Step 1: Remove the earpad

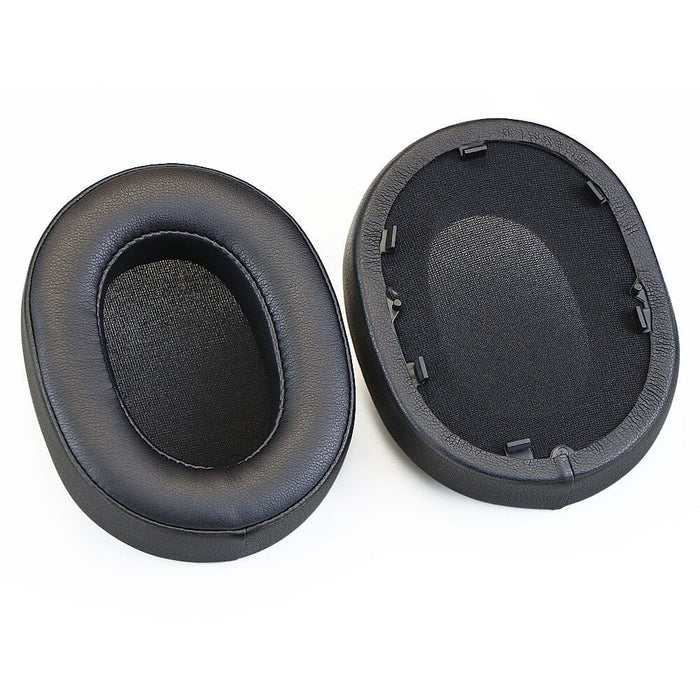

The earpads are attached to the headphones' housing block by six claws. Three claws are on the top half of the housing block, and three claws are on the lower half. Following the directions below, you will need to carefully pull the earpad away from each claw to remove the earpad.
- Hold the headphones housing plate (the outer plastic piece surrounding the earpad) with one hand.
- With your other hand, feel around the inside perimeter of the earpad cushion to locate the six claws on the housing block. They are located clockwise at approximately the 10:00, 12:00, 2:00, 4:00, 6:00, and 8:00 o'clock locations on the earcup.
- Gently insert the disassembling tool (sold separately) in the space just behind the plastic earpad plate between the claws located at the 10:00 and 12:00 o'clock positions and gently pull it up and away from the earcup until you hear a click sound. (In effect, the tool will press into the inner fabric liner of the earpad, but as the inner fabric liner is flexible it should not tear if these instructions are followed.)
Note: Do not pull the earpad cushion portion of the earpad. This may cause damage to the earpad. If you use the disassembling tool, be careful not to damage the housing block. - Carefully work around the earpad plate, repeating the above step a few more times in the spaces between adjacent claws, until you can carefully pull the entire earpad away from the six claws.
IMPORTANT: After the earpad is removed, do not touch the exposed driver. Doing so may cause the driver to be damaged.
Step 2: Install the new earpad
- Align the two pegs on the back of the earpad to the two small holes on the headphones housing block.
- Press the earpad to the housing block until you hear a clicking sound indicating that all six claws of the earpad are firmly attached to the hooks of the housing block.
- Insert a couple fingers into the inner lower side of the earpad and lift the earpad to the outer side to remove wrinkles.
- Do the same thing to each side of the earpad until all the wrinkles are removed.
These are not manufactured by Sony by are fully comaptible with the Sony Range.
Our money back guarantee applies if you are unhappy with this purchase for any reason.
